VEECO TurboDisc RealTemp 200 Pyrometry For Sale

Model Year:	2004
Quantity:	1
Condition:	Good operational condition

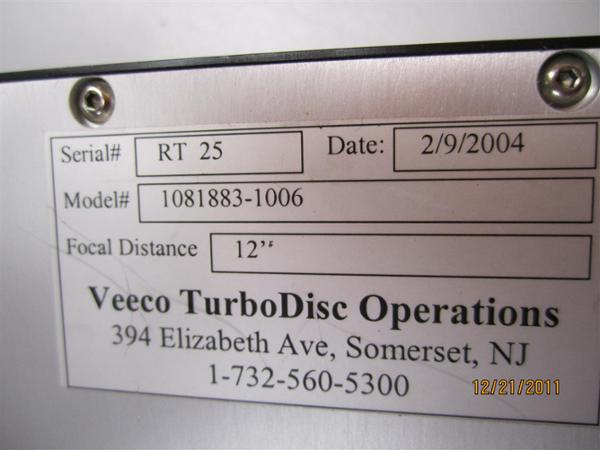

Serial No:	Available upon request
Availability:	SOLD

Configuration:

RealTemp 200 Pyrometry system

Complete with the following modules:
• Optical Head Unit (12" focal distance)
• PC controller with pre-installed software
• Interface cable

Technical Specifications (per OEM datasheet):
• Spectral wavelength: 930nm
• Compatible substrates: sapphire, SiC, Si, GaN, GaAs, Ge, InP
• Temperature measurement range: 450 to 1200°C
• Measurement spot size at focal distance: 0.30" @ 17" or 12” (from optical head to target) , custom focal distances available on request
• Minimum data acquisition time: 0.10 ms
• Wobble sensitivity: insensitive up to ± 0.25 degrees
• Viewport type: special viewport based on 1.33 flange
• Operation conditions: temperature = 18 to 40°C, relative humidity = non-condensing

Comments:

This unit was removed from Veeco Reactor in Fully operational condition.
