SPTS MPX PRO PECVD For Sale
Model Year: | 2011 |
Quantity: | 1 |
Condition: | Refurbished system |
Serial No: | Available upon request |
Availability: | SOLD |
Configuration:

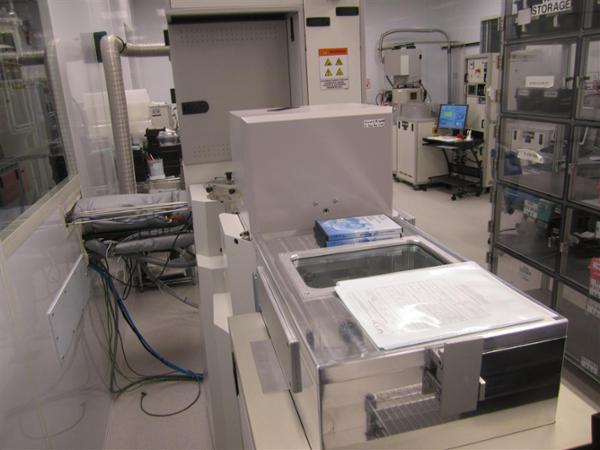

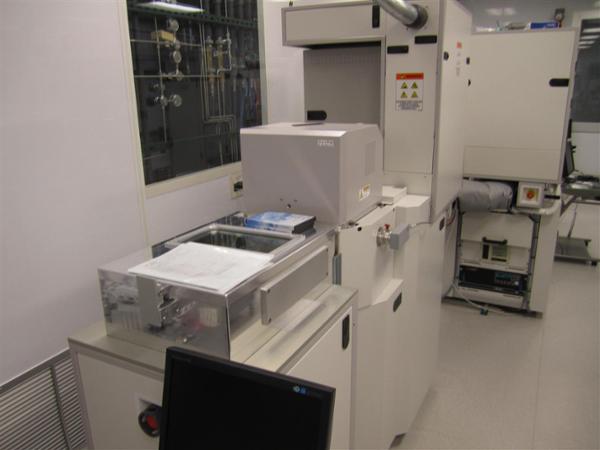

SPTS MPX PRO PECVD configured as follows:
- TEOS or Silane based Plasma Enhanced Chemical Vapor Deposition
- Process: Oxide and Nitride deposition (SiNx, SiO2)
- Configured for 100mm Wafers (capable of upto 200mm)

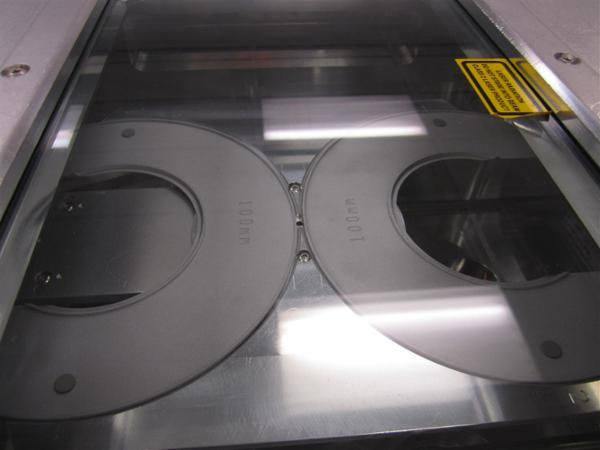

- Manually loaded Carousel Load Lock (2-Wafer Carousel)
PRO2 CVD Chamber:
- Driven Electrode, Upto 350C temperature
- Chamber heating upto 100C via distributed cartridge heaters
- Lid assembly heating of 300C max via a cast block
- High depositon rate with high gas flow capability
- shower head design gives highly uniform performance upto 200mm substrates due to advanced baffle and diffuser design
Mixed Frequency configuration:
- ENI 13.56MHz 300W RF power supply ACG3B
- Adtec 13.56MHz 2500W rated matching network
- RFPP 380KHz 1000W Coaxial Power LF Power Supply
- Adtec 380KHz 2500W rated matching network
Maxi Gas Box:
- C4F8 @ 200 SCCM
- O2 @ 3000 SCCM
- N2O @ 3000 SCCM
- SiH4 @ 200 SCCM
- NH3 @ 400 SCCM
- N2 @ 3000 SCCM
- Ar @ 1000 SCCM
- He @ 200 SCCM
- Space allocated for several more MFCs
- LDS (liquid delivery system) for TEOS
- SPTS etch back end point detection
- Alcatel Adixen ACG 28G dry Pump (Load Lock)
- Edwards iH1000 Dry pump package (Chamber)
- SMC HRS012-WF-20-M Pure Water Chiller
- System PC with Windows XP operating sytem
- SPTS PRO System Software
- Full OEM documentation of user manuals and service manuals
- Electrical input: 208, 3PH, 80A, 60 HZ
Comments:
This SPTS / STS system was manufactured in 2007. It is in excellent condition and has the latest control system and software.
-
Sold -
tell a friend -
print
This product is located at our USA - East Coast HQ facility.
