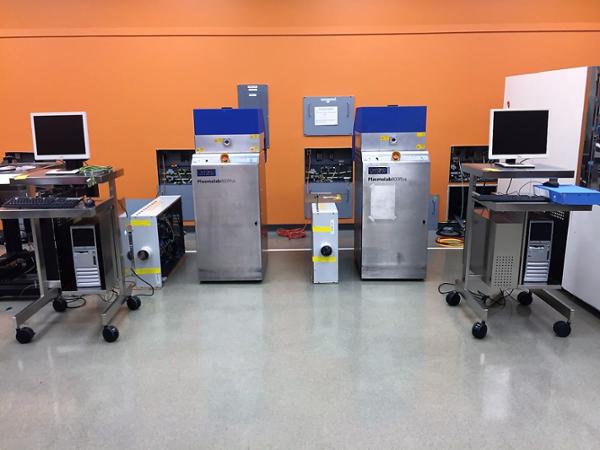

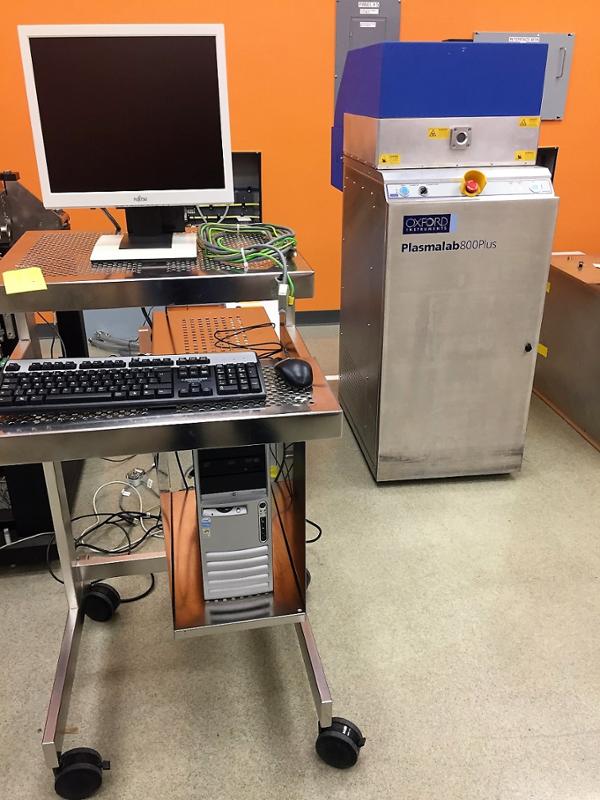

OXFORD Plasmalab 800+ PECVD For Sale

Model Year: 2007
Quantity: 1
Condition: Complete system
Serial No: Available upon request
Availability: SOLD

Configuration:

Set up for SiOx, SiNx, SiOxNy Deposition

Batch Process

450mm Platen with 300°C+ heater

RF Power:  350W 13.56MHz and 300W 480KHz

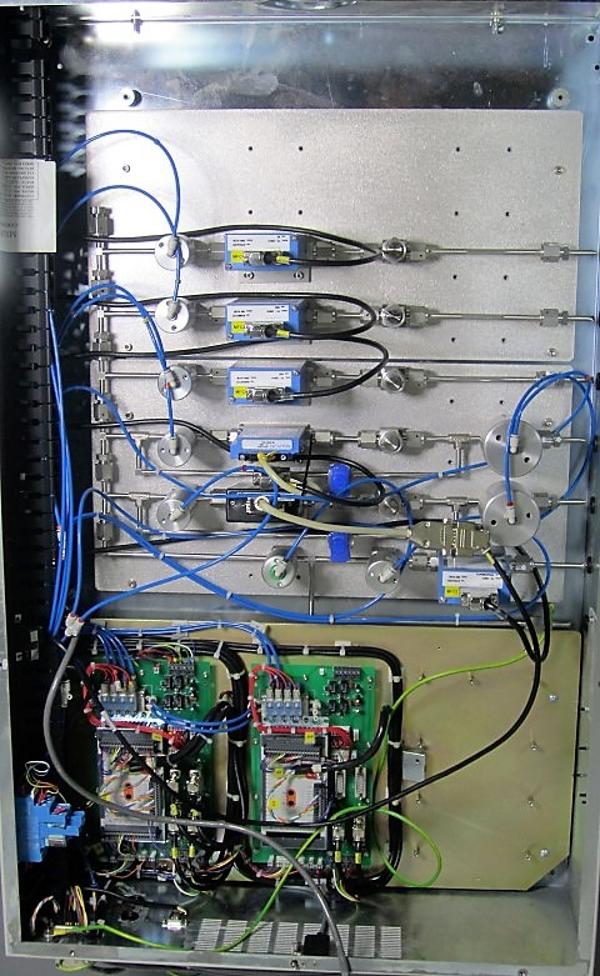

Gas pod with 6 lines including following MFCs:
N2     - 1000sccm
N2O  -  100sccm
N2O  -  2000sccm
NH3  -  100sccm
SiH4 -   2000sccm

Windows PC , user friendly interface


Comments:

This tool was removed from production October 2014.
